GRAYSON   |  4BR  2BA  2,280 sq ft

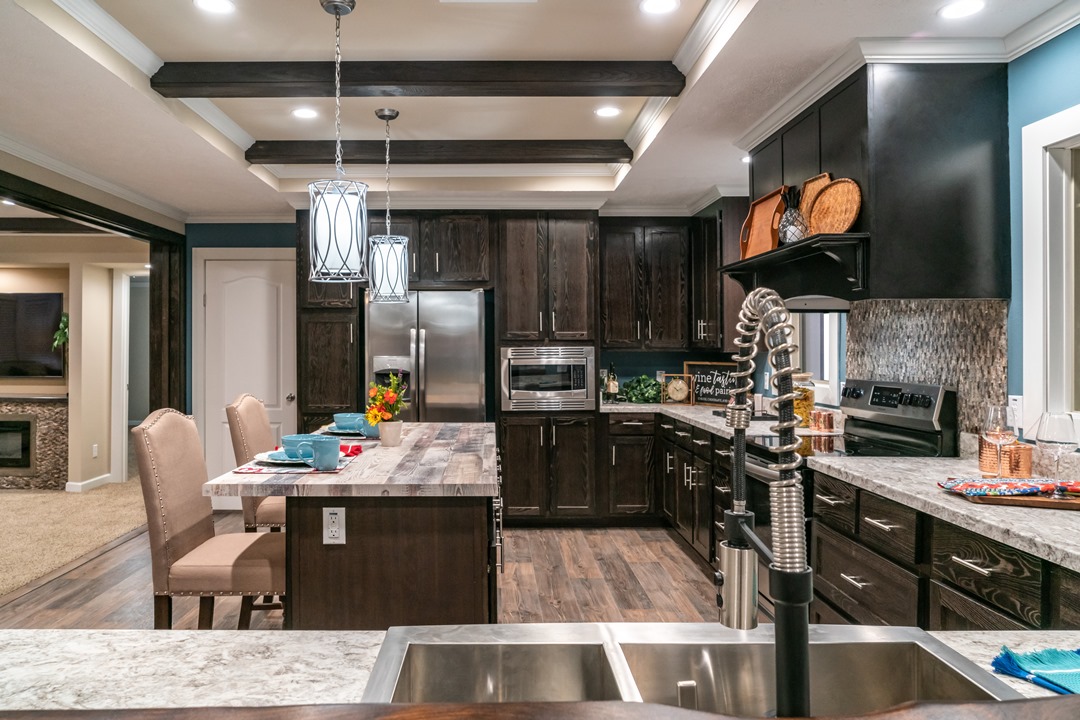

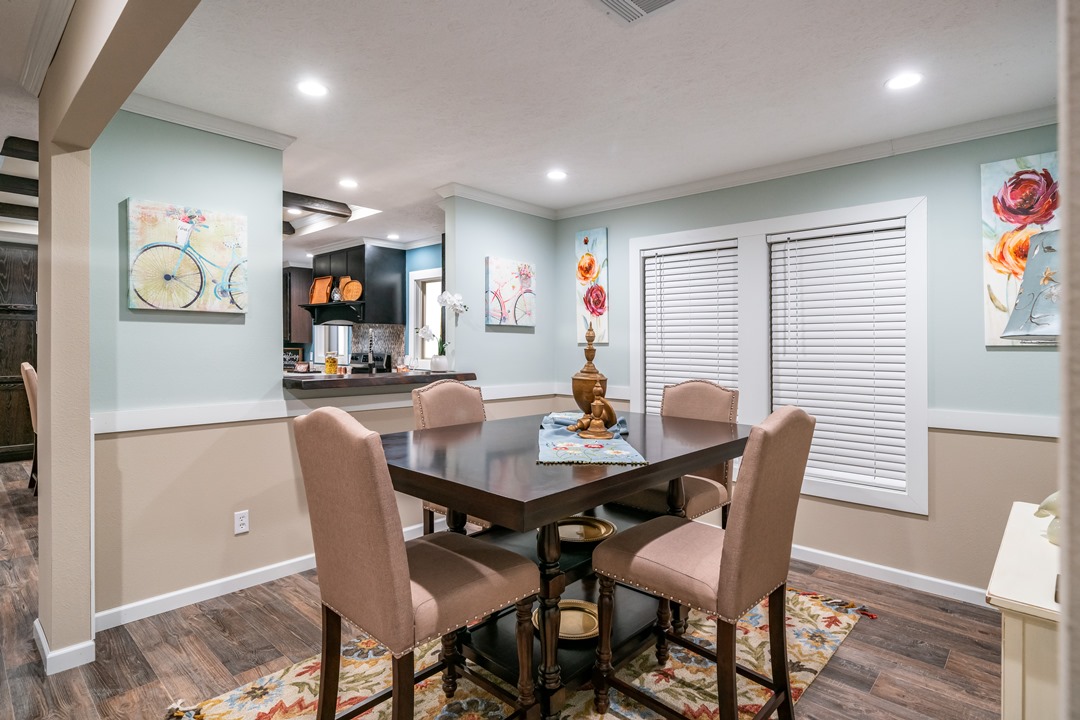

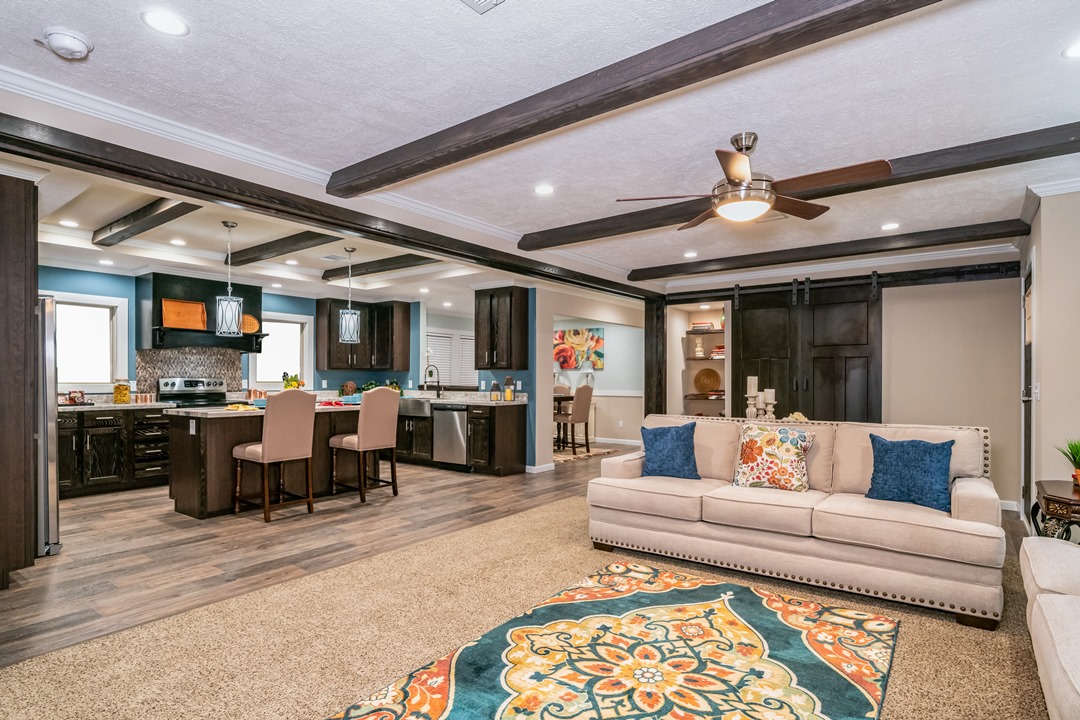

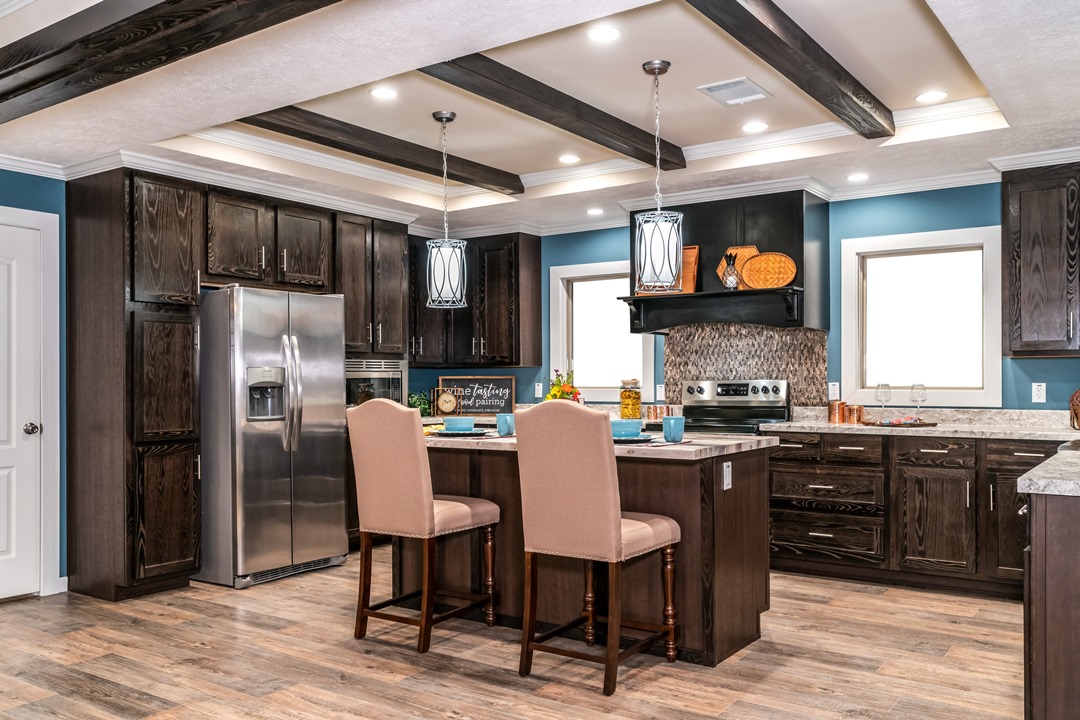

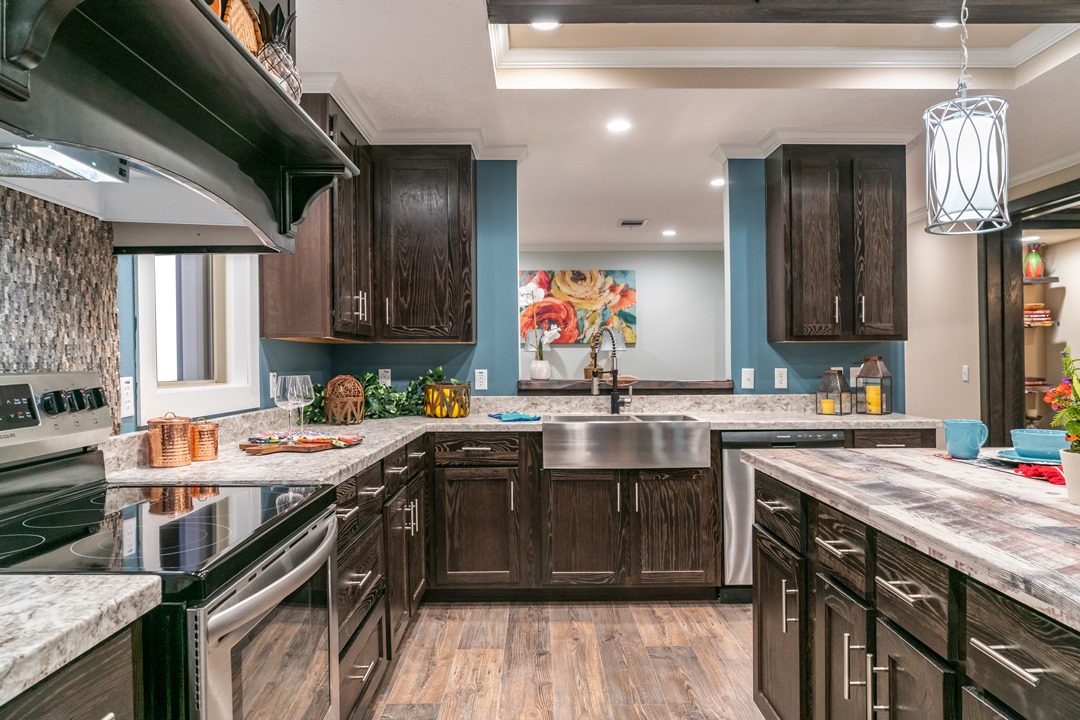

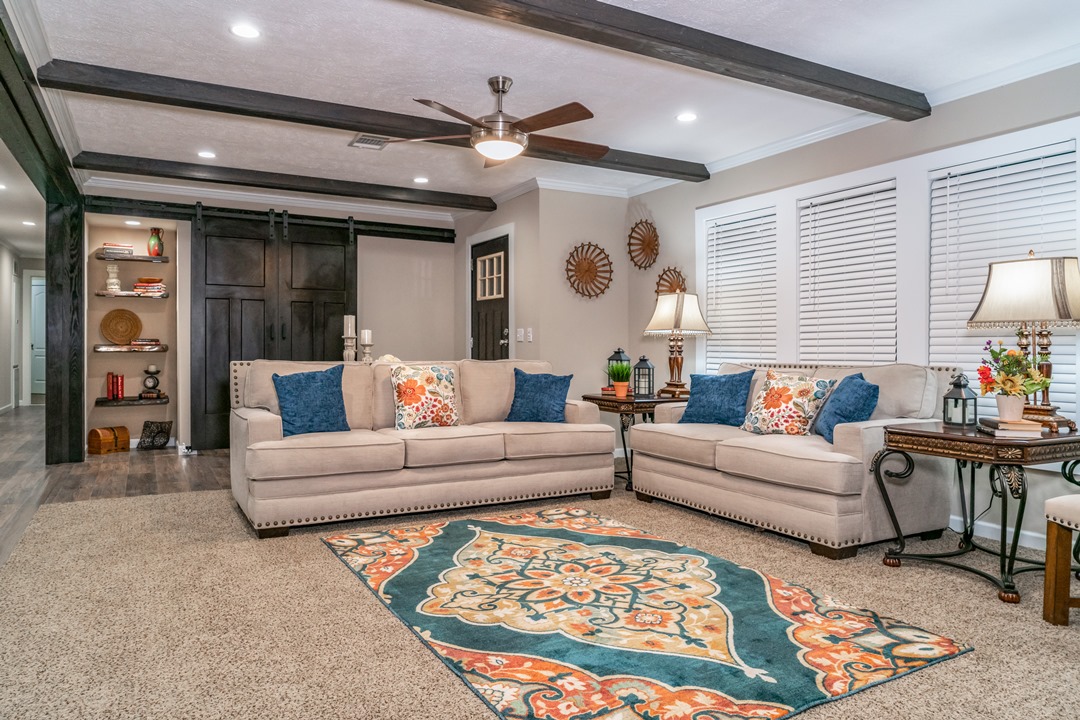

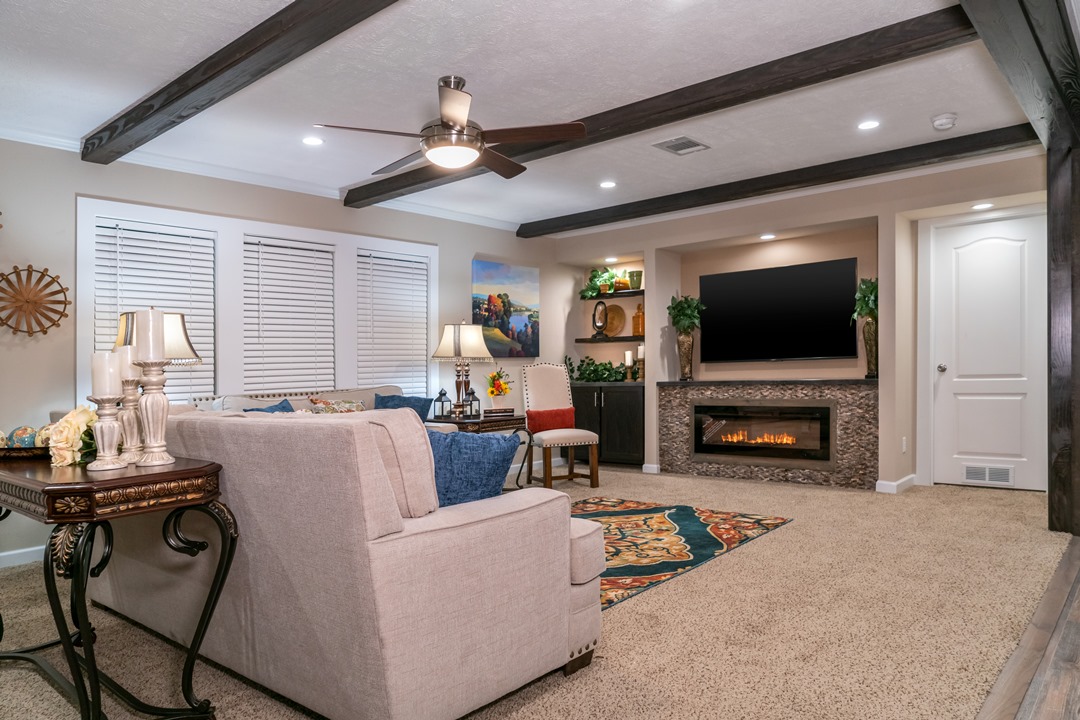

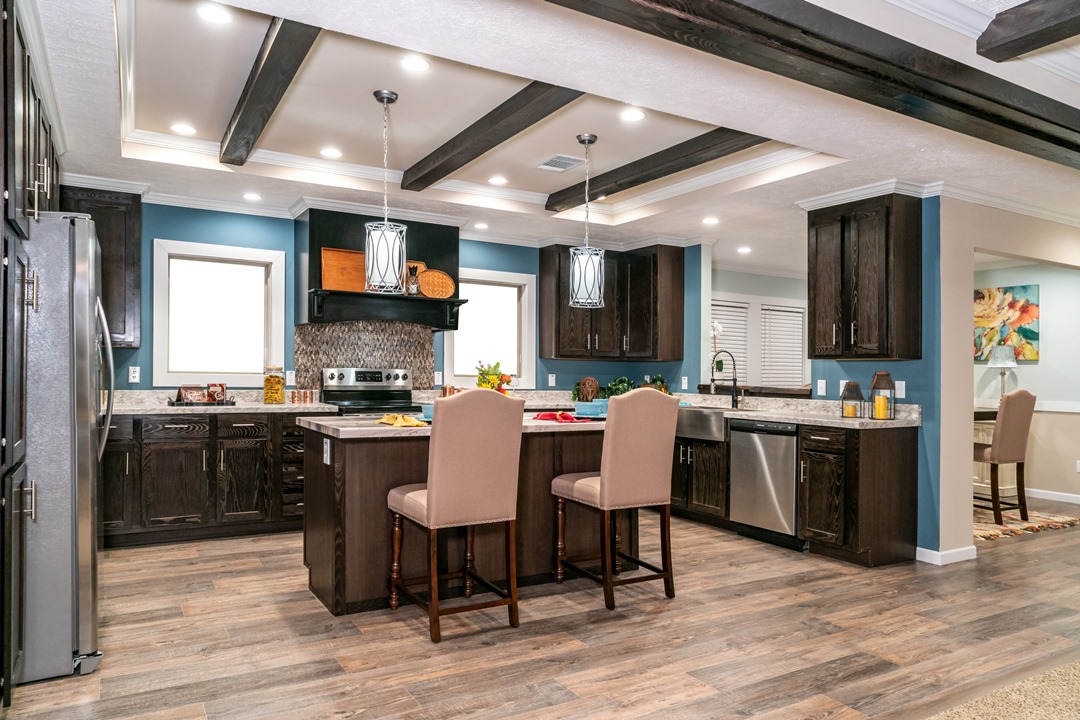

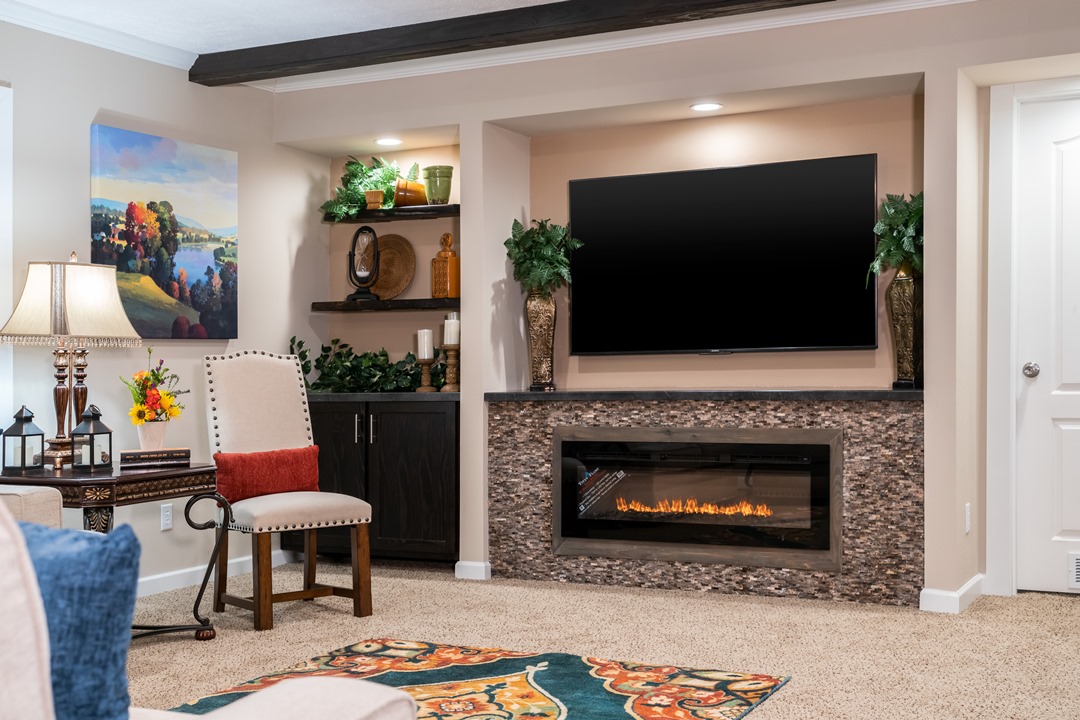

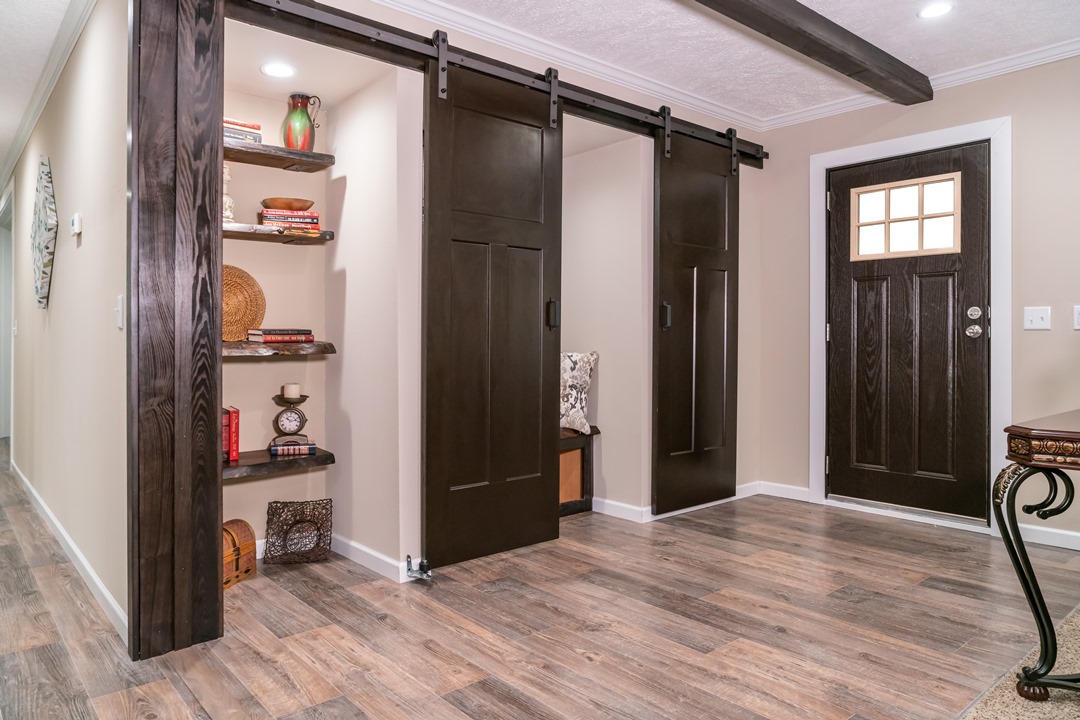

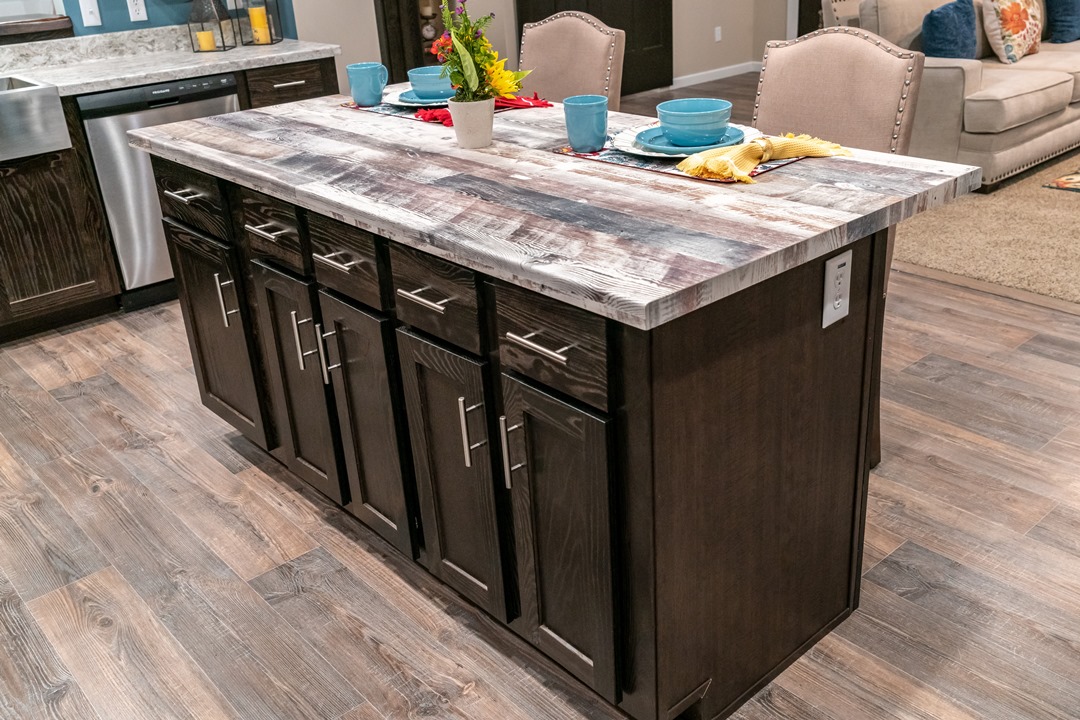

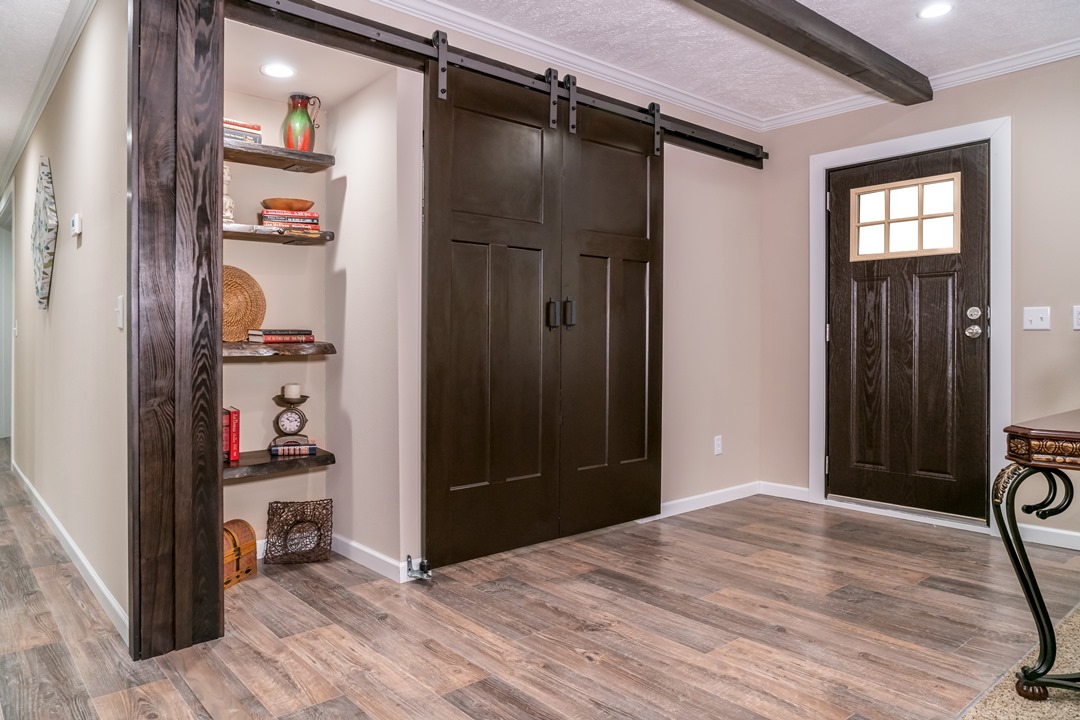

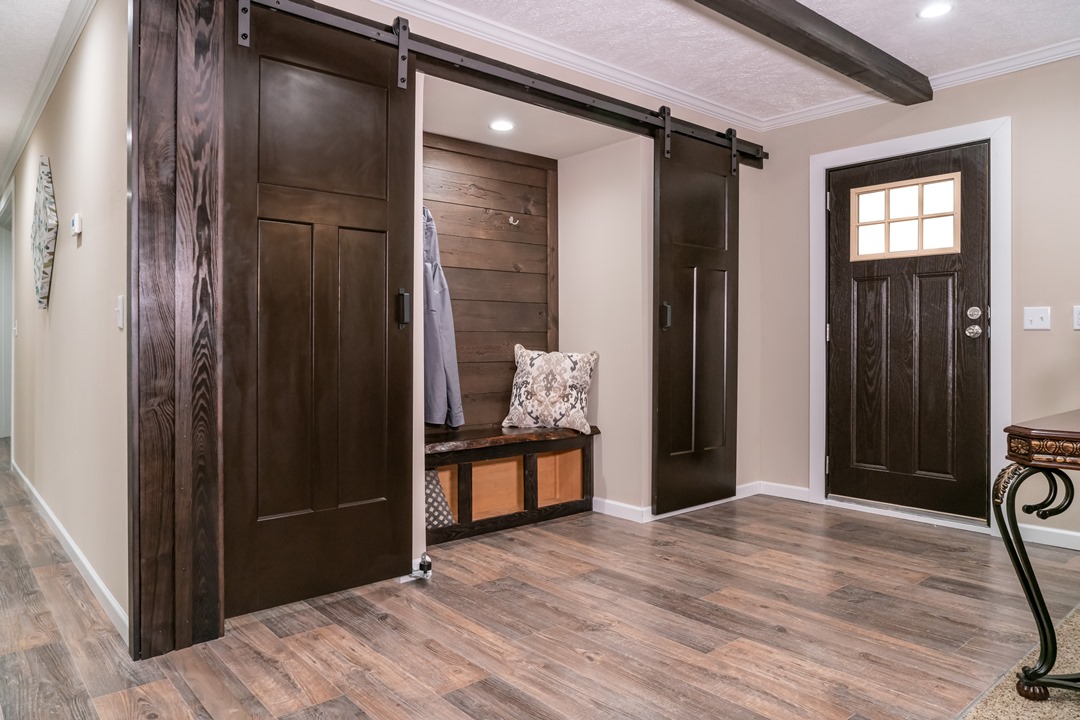

There just isn’t any other way to say it – the Grayson is one impressive home. From its large gathering room to its equally large kitchen, to the massive master suite – everything about the Grayson just looks and feels amazing. It combines space and style at every turn. It starts with a roomy central area, with a gathering room, kitchen and full size dining room. The gathering room comes with a TV nook, electric fireplace, and built-in bookshelves. The kitchen has a large center island, stainless steel appliances, and European vent range hood. Both the gathering room and the kitchen also have optional exposed wood beams to lend a farmhouse style to the interior. The foyer area has built-in bench with cubbies underneath, flanked on either side by closets concealed by barn doors.

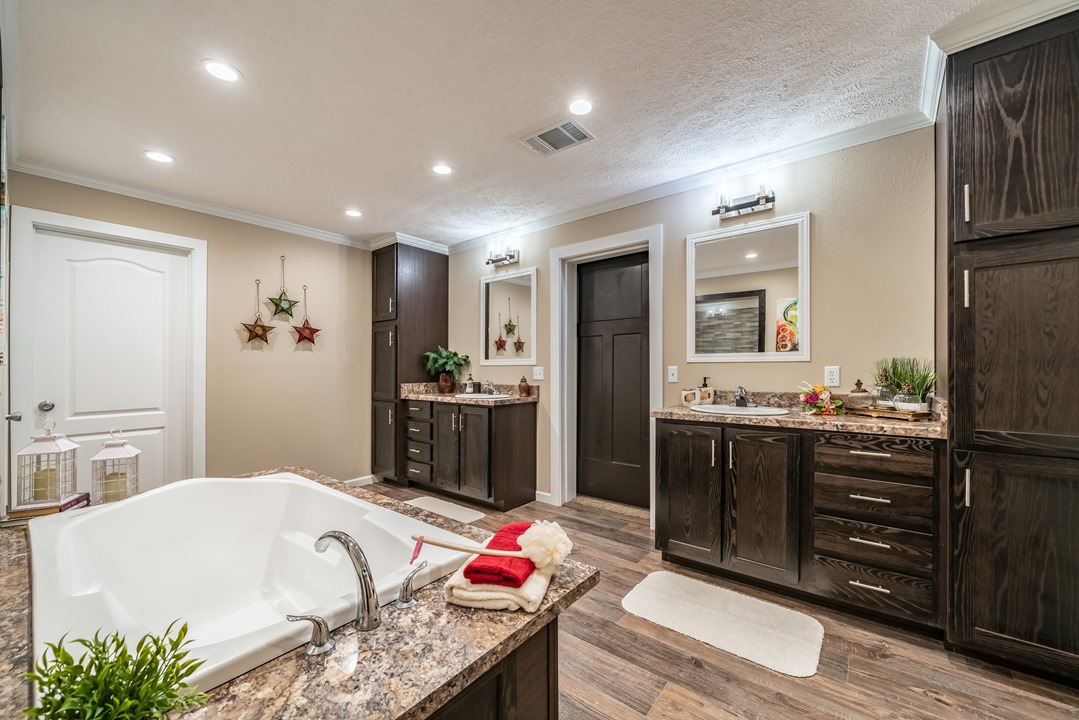

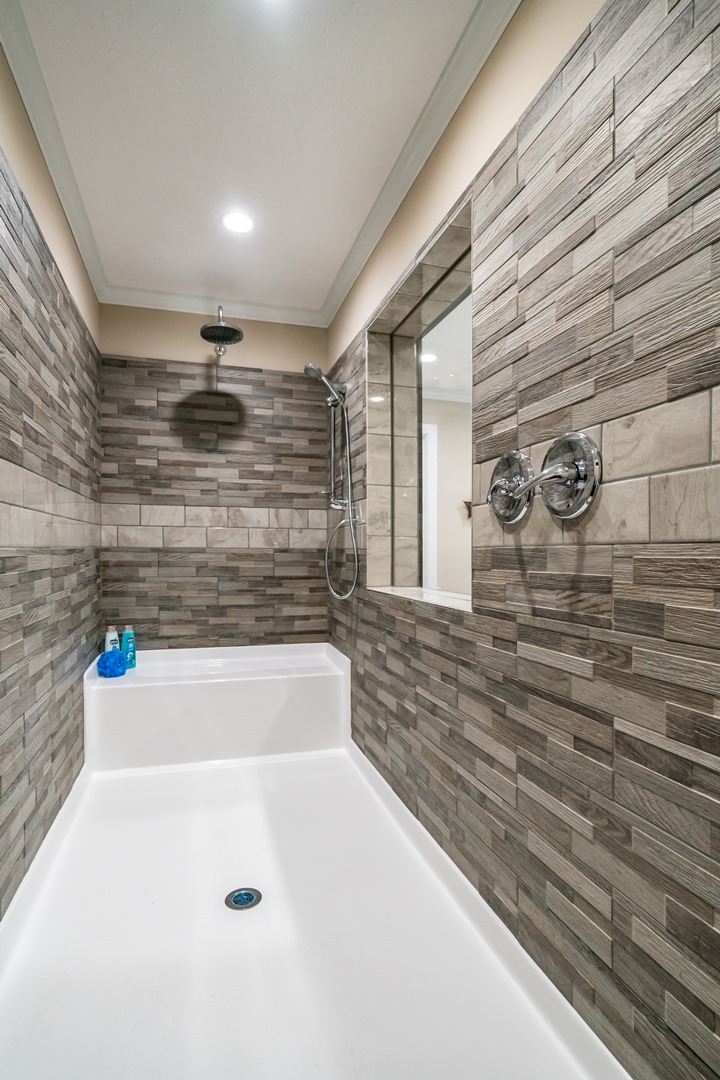

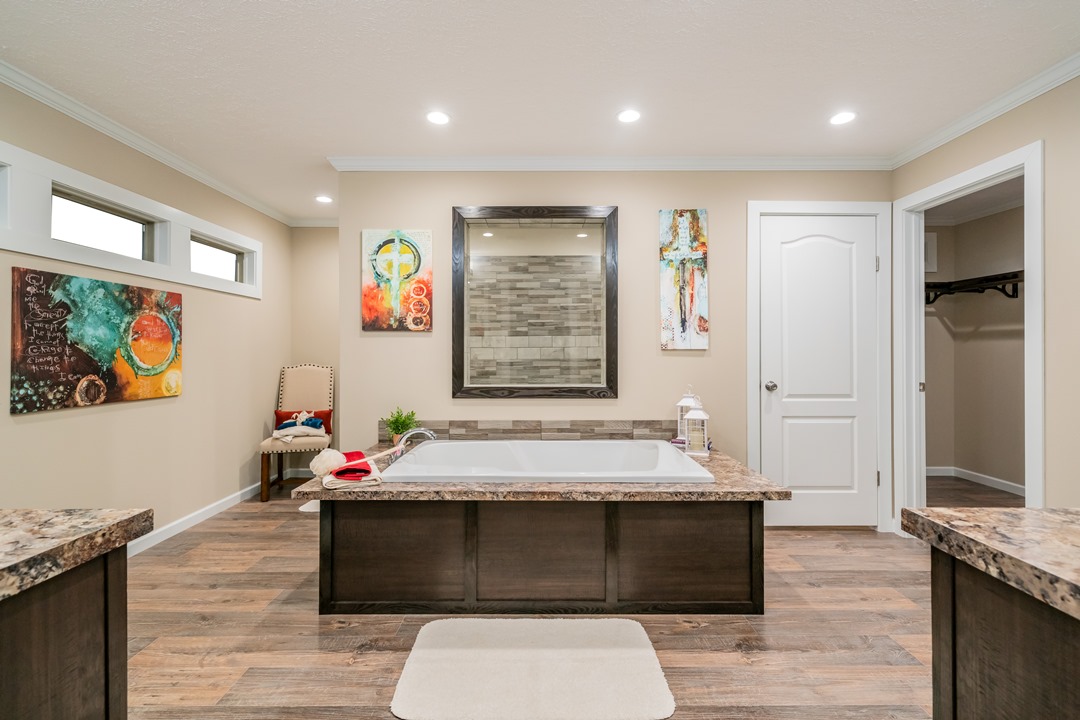

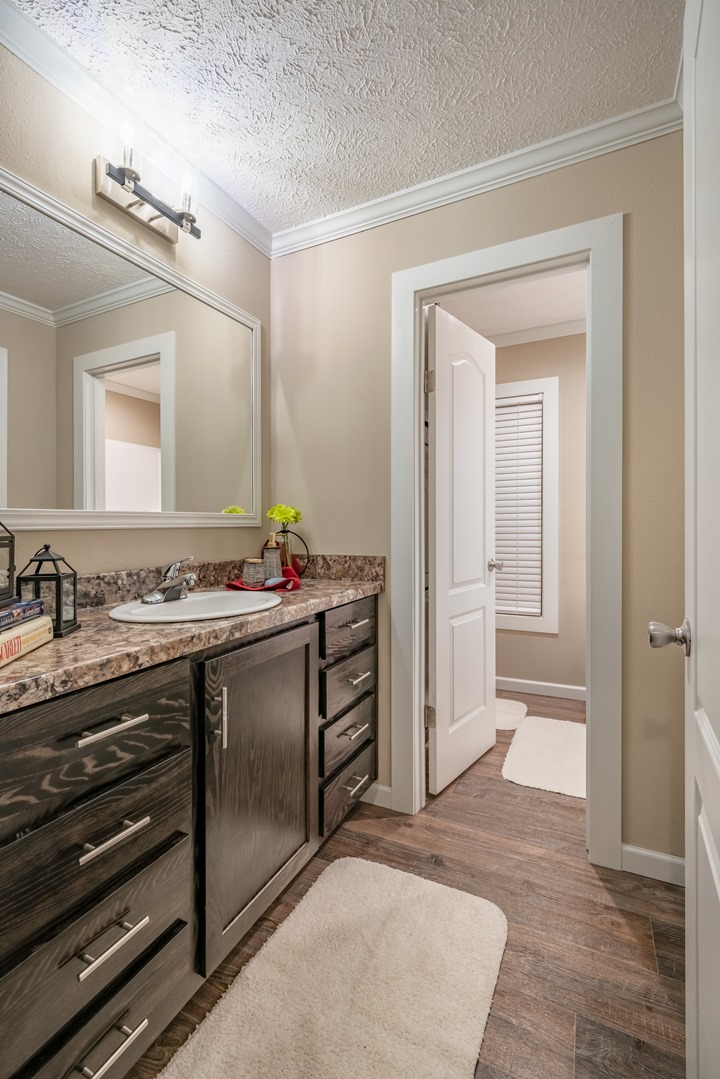

The master suite combines a huge bedroom with a very relaxing bathroom. The master bathroom has two completely separate vanity areas, a large bathtub, walk-in shower, and walk-in closet. The remaining three bedrooms are on the other side of the house, giving the master suite maximum privacy. Those other three bedrooms are all equal in size and provide plenty of room. They share a large hallway bathroom with a vanity area that is separate from the toilet and bathtub/shower. There is also a large utility room with washer/dryer hookup. The utility room also has space for a freezer.

And just like every home built by Winston Homebuilders, the Houston comes with our signature 29-gauge power rib metal roof.

VIEW PDF

Print a PDF of This Model

To view and print a PDF of this model, please click here.

VIEW PDF

Photo Gallery of Grayson Model

HUD COD
20 LB ROOF LOAD
THERMAL ZONE II
WIND ZONE I

SOLID I BEAM
OUTRIGGERS 96”
CROSSMEMBERS 96”
BRAKE AXLES: ONE
DETACHABLE HITCH

JOIST: 2X6 / 12.0” O.C.
DECKING: 19/32” OSB
LINO: BEAU FLOR
CARPET: PER PRINT 17OZ

8’ SIDEWALL
PREMIUM VINYL SIDING ON “TALLWALL”
HOUSE WRAP BEHIND VINYL
WOODBACKER BEHIND VINYL
29 GAUGE POWER RIB METAL ROOF

THERMAL PANE WINDOWS
36×80 STEEL DOOR FRONT AND BACK
w/FULL VIEW STORM DOOR
COTTAGE REAR DOOR
TWO PANEL INTERIOR DOORS

TRUSSES 24” O.C.
INSULATION: BLOWN FIBERGLASS
8’ FLAT CEILING
29-GAUGE POWER RIB METAL ROOF

FURNACE: ELECTRIC
DUCTWORK: METAL
IN FLOOR HEATING AND COOLING
ADJUSTABLE REGISTERS IN FLOOR

PEX FRESH WATER PLUMBING
WATER HEATER 50 GALLON HI EFFICIENCY

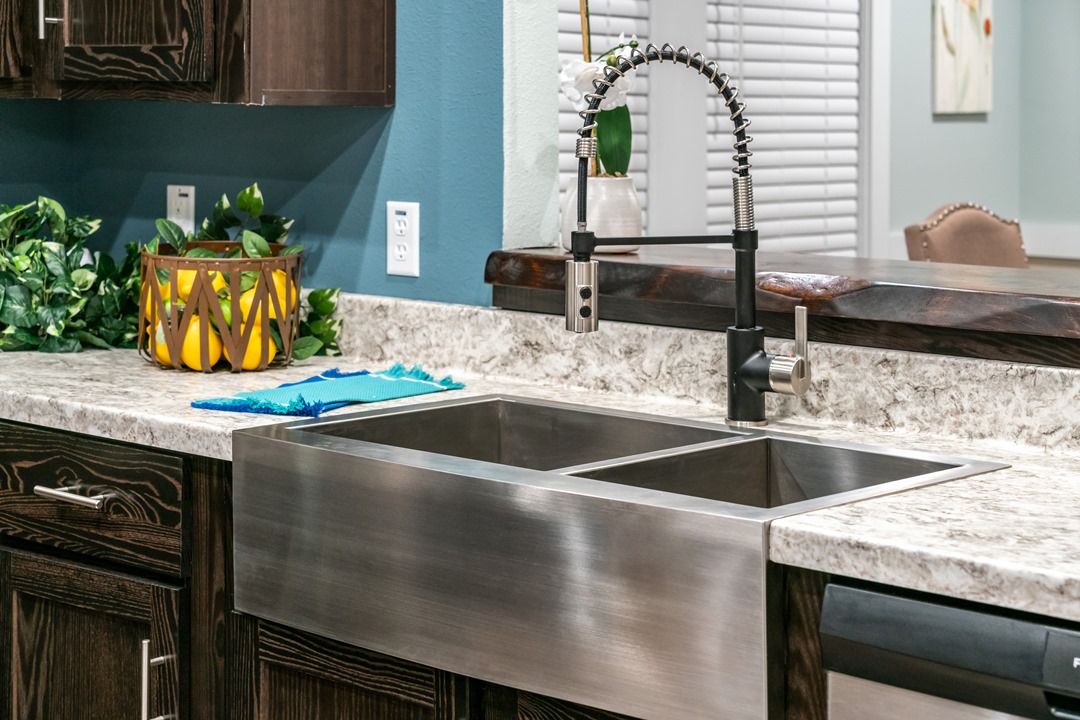

KITCHEN SINK: DOUBLE BOWL
LAVATORY SINKS: PORCELAIN
FIBERGLASS SHOWER/TUB w/WALLS
METAL FAUCETS THROUGHOUT
METAL CUT-OFF VALVES
WHOLE HOUSE CUT-OFF

200 AMP SERVICE
EXTERIOR RECEPTACLE
RECESSED LIGHTS T/O 4”
LED CEILING FAN IN LR
EXTERIOR WALLS: 2X4 16’ O.C.
INTERIOR WALLS: 2.X 24” O.C.

CABINETS MDF / 42” TALL OVERHEADS
ALL WOOD CABINETS W/ SOFT CLOSE DOORS
COUNTERTOPS: ROLLED EDGE W/ BACKSPLASH IN KIT AND M. BATH
6” CABINET PULLS
RTA CABINET DRAWER SYSTEM
CLOSET SHELVING VINYL WRAPPED
UTILITY SHELF AT W/D AREA
WALL COVERINGS: 1/2” PAINTED GYP

REFRIGERATOR: 22 CUBIC FT SxS BLACK
RANGE: 30’ ELECTRIC BLACK (COIL EYE)
STAINLESS STEEL OPTIONAL
BLACK EURO VENTHOOD

3 1/4” MOLDING THROUGHOUT – WHITE
